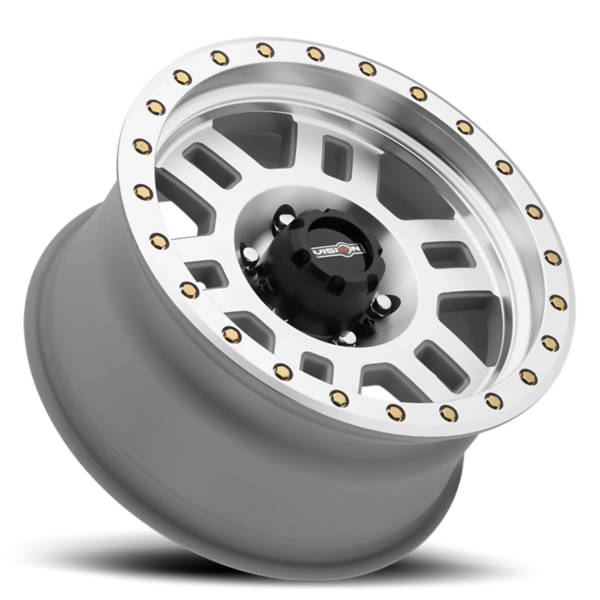

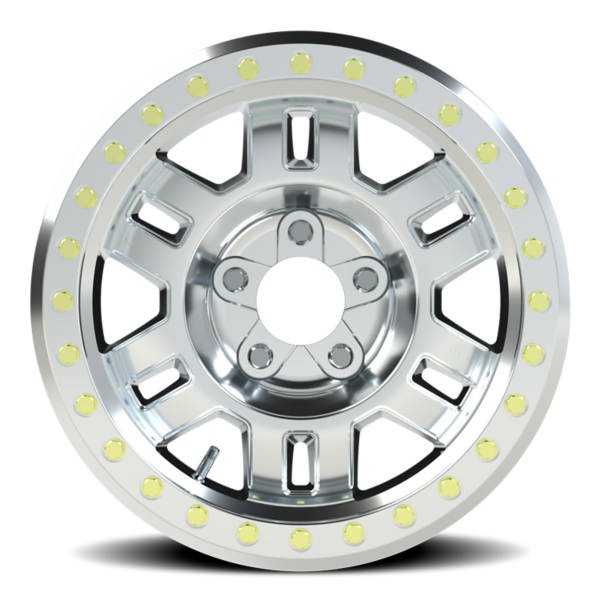

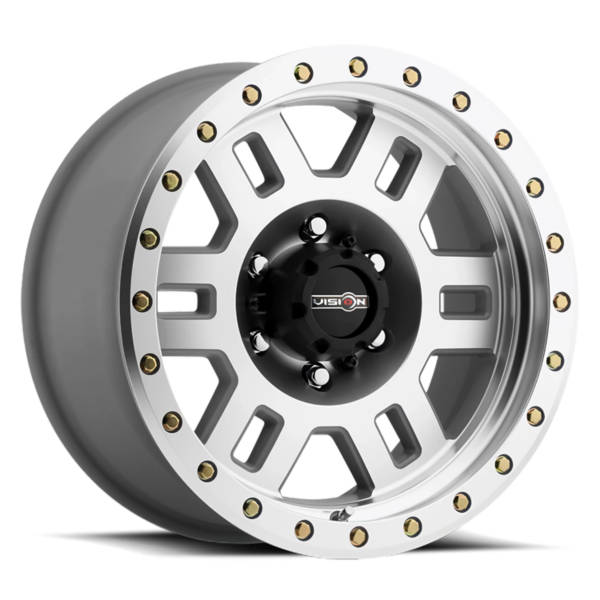

Vision Manx 2 Beadlock, 17 X8.5 5-139.70 -15 SLMCXX
The Vision Off-Road (356BL) Manx 2 Beadlock is a sleek split 8 spoke design with a true beadlock for confident traction in air down situations. The Manx 2 is built in 4 lug fitments in popular 14 and 15 inch ATV/UTV sizes in a Satin Black or Machined finish. It comes with a bolt-on center cap featuring the Vision brand logo. Looking to add some rugged, off-road style to your machine, check out the (356BL) Manx 2 Beadlock by Vision Off-Road. These wheels are intended for off-road use only.
| RIM DIAMETER Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 17" |
| RIM WIDTH Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 8.5" |
| BOLT PATTERN The number of bolt holes and the distance of the lug holes. The bolt pattern is specific to your vehicle. | 5-139.7 |
| OFFSET The offset determines the distance of the mounting pad in relation to the wheel's centerline. A higher offset tucks under the fender, a lower offset pushes towards the fender. | -15 |
| HUB BORE SIZE The size of the hole in the back of the wheel that fits over the vehicle hub bore. | 110 |
| WEIGHT The weight of the wheel measured in pounds (weight of wheel only). | 39 LBS |
| VENDOR FINISH The manufacturer finish of the wheel. | Machined Face Machined Ring |
| NUMBER OF BOLTS The number of bolts in the wheel in relation to the bolt pattern. | 5 |
| LOAD CAPACITY The weight the wheel can carry, mounted to a tire and inflated. | 3650 LBS |
| VPN Vendor Product Number | 398BLZ7885UMFMR-15 |
| GTIN Global Trade Item Number | 886821220632 |
