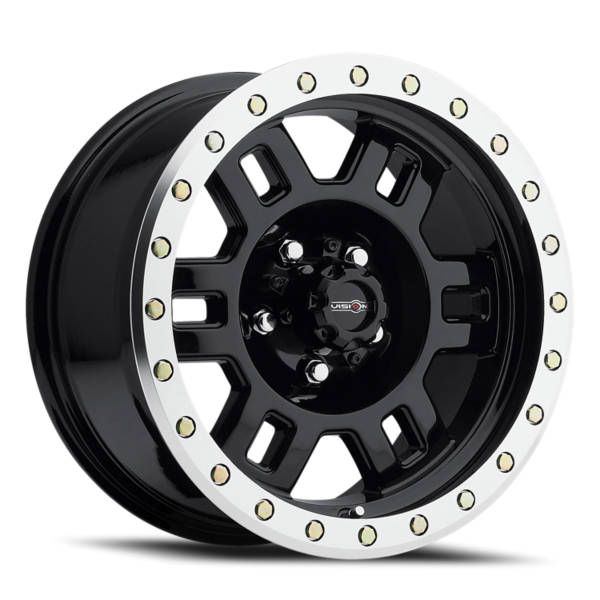

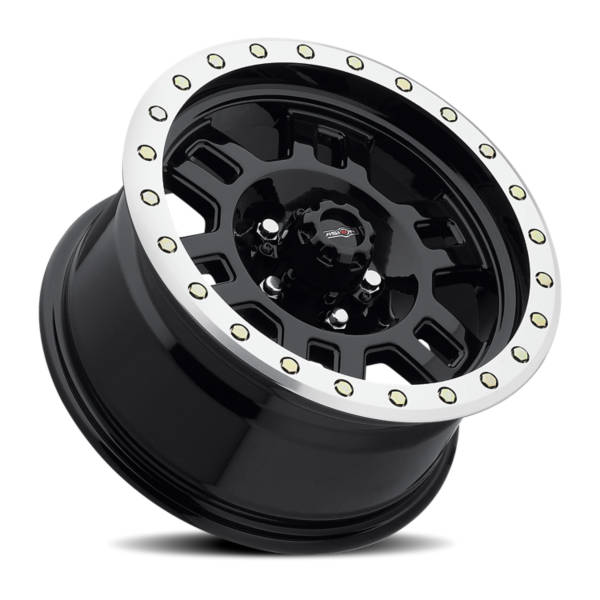

Vision Manx Competition Beadlock, 17 X8.5 5-114.30 -15 SLMCBA
The Vision Off-Road Manx Competition Beadlock (398BL) is a full-face split 6-spoke wheel design with unique details. This wheel features a beadlock ring that bolts onto the lip of the wheel for the most extreme conditions off-road. It includes a push-thru center cap with the Vision brand logo. It is built in a 17X8.5 inch size in a Machined finish. The Vision Manx Competition Beadlock is for off-road use only.
| RIM DIAMETER Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 17" |
| RIM WIDTH Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 8.5" |
| BOLT PATTERN The number of bolt holes and the distance of the lug holes. The bolt pattern is specific to your vehicle. | 5-114.3 |
| OFFSET The offset determines the distance of the mounting pad in relation to the wheel's centerline. A higher offset tucks under the fender, a lower offset pushes towards the fender. | -15 |
| HUB BORE SIZE The size of the hole in the back of the wheel that fits over the vehicle hub bore. | 10 |
| WEIGHT The weight of the wheel measured in pounds (weight of wheel only). | 43.32 LBS |
| VENDOR FINISH The manufacturer finish of the wheel. | As-cast Silver Machined Face And Ring |
| NUMBER OF BOLTS The number of bolts in the wheel in relation to the bolt pattern. | 5 |
| LOAD CAPACITY The weight the wheel can carry, mounted to a tire and inflated. | 3650 LBS |
| VPN Vendor Product Number | 398BL7865ACMFR-15 |
| GTIN Global Trade Item Number | 886821183036 |
