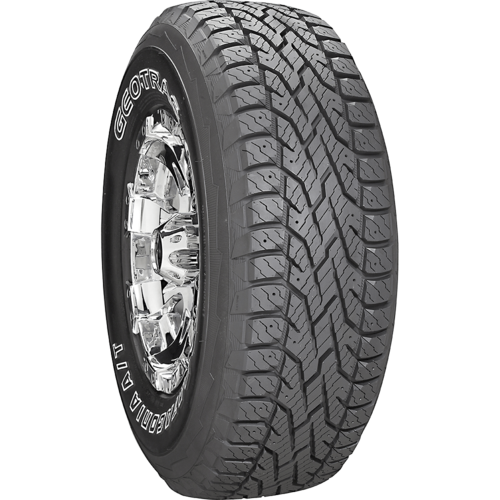

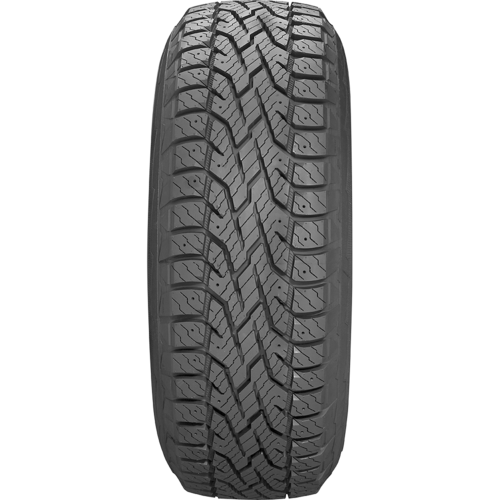

Geo Trac Patagonia A/T, LT225 /75 R16 115S E1 OWL
The GeoTrac Patagonia A/T is no longer available. Please call for assistance.
UNIFORM TIRE QUALITY GRADE (UTQG)Uniform Tire Quality Grade
TreadwearN/A
TractionN/A
TemperatureN/A
| SECTION WIDTH Measures the width of the tire from sidewall to sidewall, which is mounted on a wheel and inflated. | 225 |
| ASPECT RATIO Determines the sidewall height of the tire, based on the width. | 75 |
| RIM DIAMETER Measures the rim size from top to bottom (in inches). | 16" |
| OVERALL DIAMETER Measures the tire height from top to bottom when mounted on a wheel and inflated. | 29.3" |
| RIM WIDTH RANGE The approved range of rim widths this tire can be safely mounted on. | 6.0" - 7.0" |
| WEIGHT The weight of the tire measured in pounds (weight of tire only). | 40 LBS |
| TREAD DEPTH Measured in /32 of an inch to determine the height of the tread block from top to bottom. | 15/32" |
| LOAD INDEX Determines the weight a tire can carry at maximum air pressure. See load Index chart. | 115 |
| LOAD RANGE Determines the ply rating of the tire. Should be replaced with the same or higher rating. | E1 |
| MAX PSI The max psi is the highest pressure the tire can hold, but should be inflated to your vehicle specifications not exceeding this amount. | 80 PSI |
| SPEED RATING Designation from laboratory testing to determine the maximum speed the tire can travel. Maintain the same speed rating or higher for replacement. | Up to 112 mph |
| SIDEWALL DESC. The sidewall designation to describe the lettering on the sidewall. | Raised Outline White Lettering |
| VPN Vendor Product Number | 22265013 |
| GTIN Global Trade Item Number | 758823136429 |
