DX4 Vibe

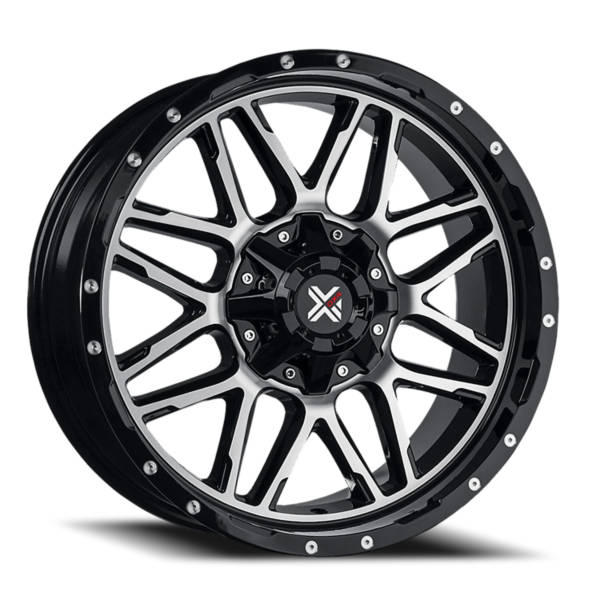

The DX4 Vibe from Drag Wheels is a mesh style split 8 spoke wheel with machined details on each spoke. This wheel features machined rivets on the lip and comes with a bolt-on center cap featuring the DX4 brand logo. It is built in 20 inch sizes in a Gloss Black Machined or Flat Black finish. All DX4 wheels come with a lifetime structural warranty and 1 year finish warranty.
"| RIM DIAMETER Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 20.0" |
| RIM WIDTH Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 9.0" |
| BOLT PATTERN The number of bolt holes and the distance of the lug holes. The bolt pattern is specific to your vehicle. | 5-139.7/5-150.0 - 6-135.0/6-139.7 |
| OFFSET The offset determines the distance of the mounting pad in relation to the wheel's centerline. A higher offset tucks under the fender, a lower offset pushes towards the fender. | 10 |
| HUB BORE SIZE The size of the hole in the back of the wheel that fits over the vehicle hub bore. | 108.0 - 110.2 |
| NUMBER OF BOLTS The number of bolts in the wheel in relation to the bolt pattern. | 5 - 6 |
| LOAD CAPACITY The weight the wheel can carry, mounted to a tire and inflated. | 2540.0 LBS |
