Product info:

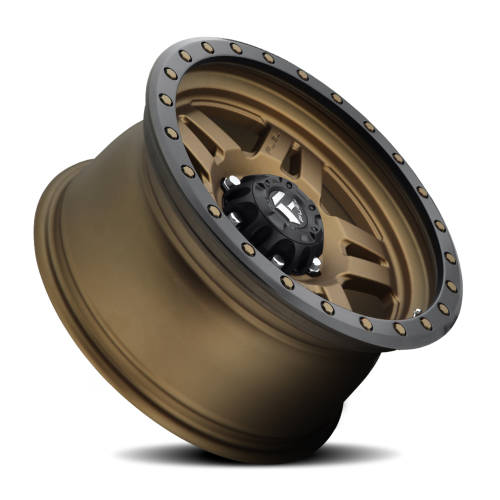

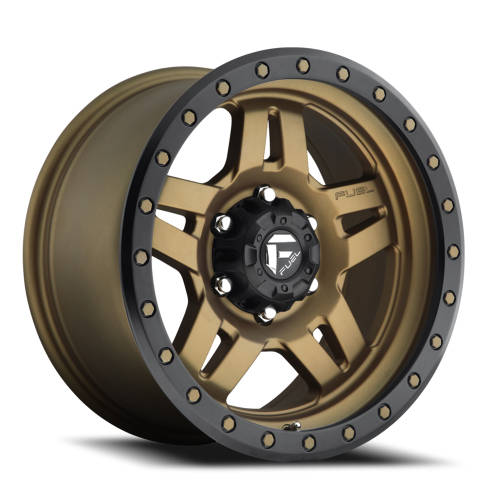

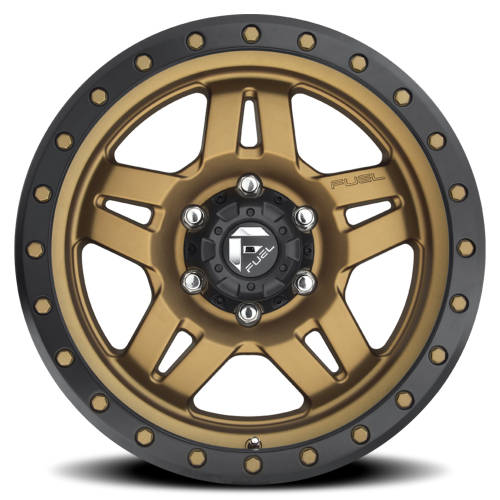

Fuel Wheels Anza D583, 20 X9 6-139.70 1 BZMTBL
The Fuel Wheels Anza is a split 5-spoke wheel design with notched spoke details. This wheel features Fuel etched into one of the spokes along with divots cast into the lip of the wheel to simulate a bead lock. It includes a bolt-on center cap with the Fuel brand logo. It is built in popular 14 and 15 sizes for your ATV/UTV and 16 thru 20 inch sizes for your truck or SUV in a Matte Black with Anthracite Ring (D557), Matte Anthracite with Black Ring (D558) or Matte Bronze with Black Ring (D583) finish. The Fuel Anza adds off-road styling and ruggedness to your ride.
| RIM DIAMETER Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 20" |
| RIM WIDTH Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 9" |
| BOLT PATTERN The number of bolt holes and the distance of the lug holes. The bolt pattern is specific to your vehicle. | 6-139.7 |
| OFFSET The offset determines the distance of the mounting pad in relation to the wheel's centerline. A higher offset tucks under the fender, a lower offset pushes towards the fender. | 1 |
| HUB BORE SIZE The size of the hole in the back of the wheel that fits over the vehicle hub bore. | 108 |
| WEIGHT The weight of the wheel measured in pounds (weight of wheel only). | 34 LBS |
| VENDOR FINISH The manufacturer finish of the wheel. | Matte Bronze Black Ring |
| NUMBER OF BOLTS The number of bolts in the wheel in relation to the bolt pattern. | 6 |
| LOAD CAPACITY The weight the wheel can carry, mounted to a tire and inflated. | 2500 LBS |
| VPN Vendor Product Number | D58320908350 |
| GTIN Global Trade Item Number | 885463852027 |
