G-FX TR10, 20 X10 6-135.00 -24 BKGLBM

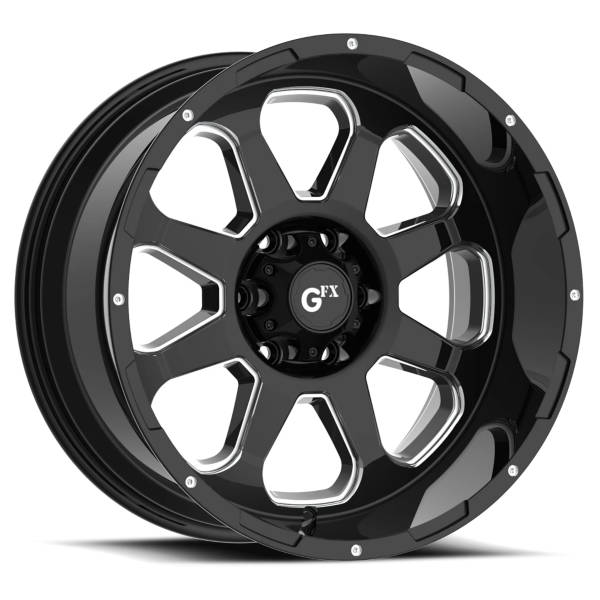

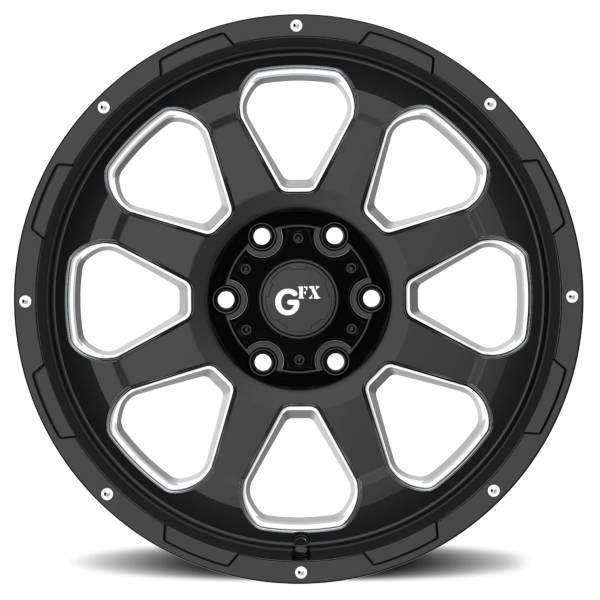

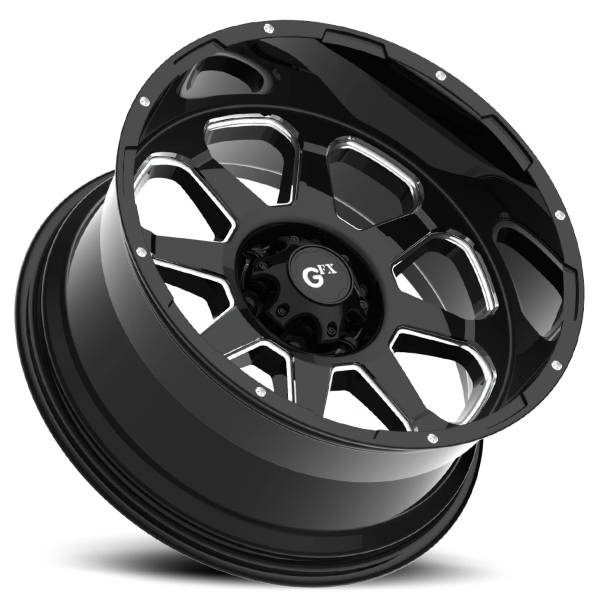

The G-FX TR10 from Voxx Wheels is an 8 spoke wheel with machined details on each spoke. This wheel features machined rivets on the lip and comes with a bolt-on center cap featuring the G-FX brand logo. It is built in 17 and 20 inch sizes in a Gloss Black Milled finish. All G-FX wheels come with a lifetime structural warranty and 1 year finish warranty.
| RIM DIAMETER Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 20" |
| RIM WIDTH Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 10" |
| BOLT PATTERN The number of bolt holes and the distance of the lug holes. The bolt pattern is specific to your vehicle. | 6-135.0 |
| OFFSET The offset determines the distance of the mounting pad in relation to the wheel's centerline. A higher offset tucks under the fender, a lower offset pushes towards the fender. | -24 |
| HUB BORE SIZE The size of the hole in the back of the wheel that fits over the vehicle hub bore. | 87.1 |
| WEIGHT The weight of the wheel measured in pounds (weight of wheel only). | 38 LBS |
| VENDOR FINISH The manufacturer finish of the wheel. | Gloss Black Milled |
| NUMBER OF BOLTS The number of bolts in the wheel in relation to the bolt pattern. | 6 |
| LOAD CAPACITY The weight the wheel can carry, mounted to a tire and inflated. | 2500 LBS |
| VPN Vendor Product Number | T10 210-6135-24 GBM |
| GTIN Global Trade Item Number | 816941024995 |
