Product info:

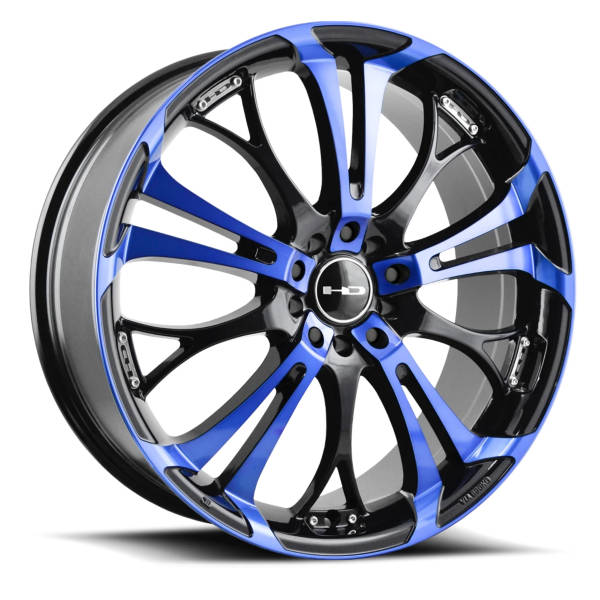

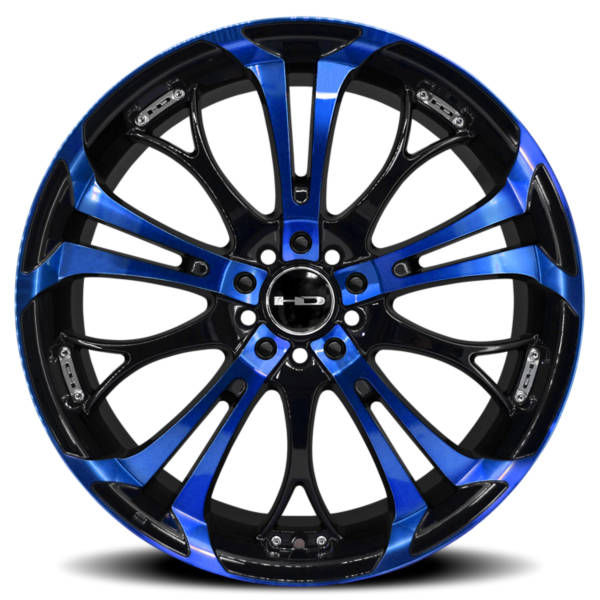

HD Wheels Spinout, 17 X7 5-100.00/114.30 40 BKMCXX
17X7 5-100.00/114.30 40BK HDW SOUT
| RIM DIAMETER Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 17" |
| RIM WIDTH Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 7" |
| BOLT PATTERN The number of bolt holes and the distance of the lug holes. The bolt pattern is specific to your vehicle. | 5-100.0/5-114.3 |
| OFFSET The offset determines the distance of the mounting pad in relation to the wheel's centerline. A higher offset tucks under the fender, a lower offset pushes towards the fender. | 40 |
| HUB BORE SIZE The size of the hole in the back of the wheel that fits over the vehicle hub bore. | 73.1 |
| WEIGHT The weight of the wheel measured in pounds (weight of wheel only). | 23.85 LBS |
| VENDOR FINISH The manufacturer finish of the wheel. | Gloss Black Machined Face W Blue Clear |
| NUMBER OF BOLTS The number of bolts in the wheel in relation to the bolt pattern. | 5 |
| LOAD CAPACITY The weight the wheel can carry, mounted to a tire and inflated. | 1520 LBS |
| VPN Vendor Product Number | SO17703740BK-BL |
| GTIN Global Trade Item Number | 842201105630 |
