Product info:

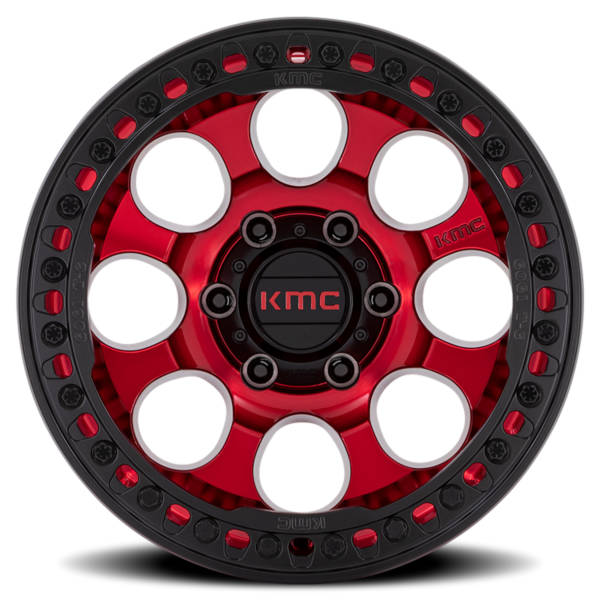

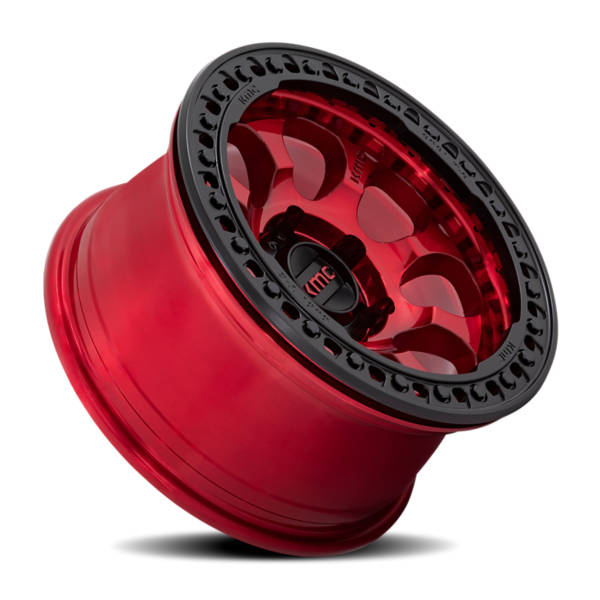

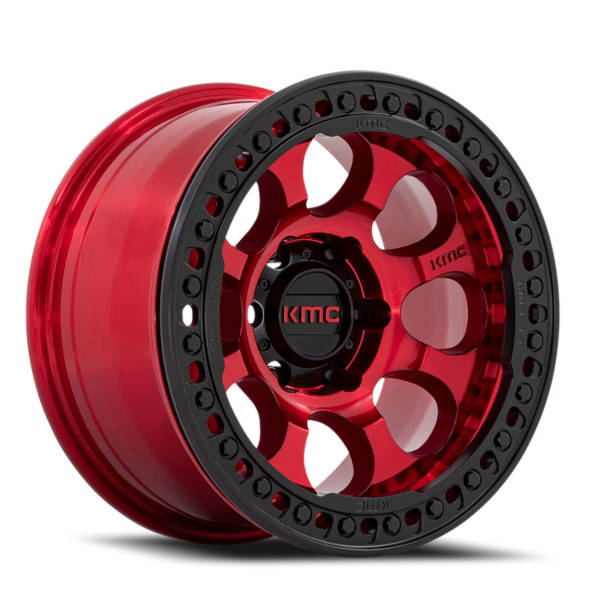

KMC KM237 Riot Beadlock, 17 X9 5-127.00 -38 RDGLXX
Make a ruckus during your off-road adventures with the KM237 Riot Beadlock rim.
KMC KM237 Riot Beadlock Features
The KMC237 Riot Beadlock is a study in contrasts. This deep concave modular wheel is a bold choice with its smooth, satin black face set off by a machined lip and brass bolts.
The classic modular design is an aggressive look that adds that extra edge to your rig. It’s a timeless classic that never goes out of style!
The Riot Beadlock is available in a 17” size with multiple bolt patterns and offsets to fit a range of trucks and SUVs.
Other features of the KMC KM237 Riot Beadlock include:
-
Functional beadlock ring allows you to air down tires for maximum grip.
-
Rugged mil-spec design emphasizes your rig’s aggressive stance.
-
Available in a 17” size with multiple bolt patterns and offsets to fit a variety of trucks and SUVs.
KMC KM237 Riot Beadlock Warranty
This wheel is covered by the manufacturer’s limited warranty for structural integrity.
Make the most of these wheels by adding a new set of rough-and-ready all-terrain tires to your order. Put together your perfect tire and wheel package to save time and money with the convenience of a single installation appointment and fee.
Kick up some dust, crawl over rocks, and get down and dirty in the mud – the KMC Riot Beadlock can handle it all.
| RIM DIAMETER Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 17" |
| RIM WIDTH Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 9" |
| BOLT PATTERN The number of bolt holes and the distance of the lug holes. The bolt pattern is specific to your vehicle. | 5-127.0 |
| OFFSET The offset determines the distance of the mounting pad in relation to the wheel's centerline. A higher offset tucks under the fender, a lower offset pushes towards the fender. | -38 |
| HUB BORE SIZE The size of the hole in the back of the wheel that fits over the vehicle hub bore. | 71.5 |
| WEIGHT The weight of the wheel measured in pounds (weight of wheel only). | 38.54 LBS |
| VENDOR FINISH The manufacturer finish of the wheel. | Candy Red With Black Ring |
| NUMBER OF BOLTS The number of bolts in the wheel in relation to the bolt pattern. | 5 |
| LOAD CAPACITY The weight the wheel can carry, mounted to a tire and inflated. | 2500 LBS |
| VPN Vendor Product Number | KM237QB17905038N |
| GTIN Global Trade Item Number | 049000179903 |
