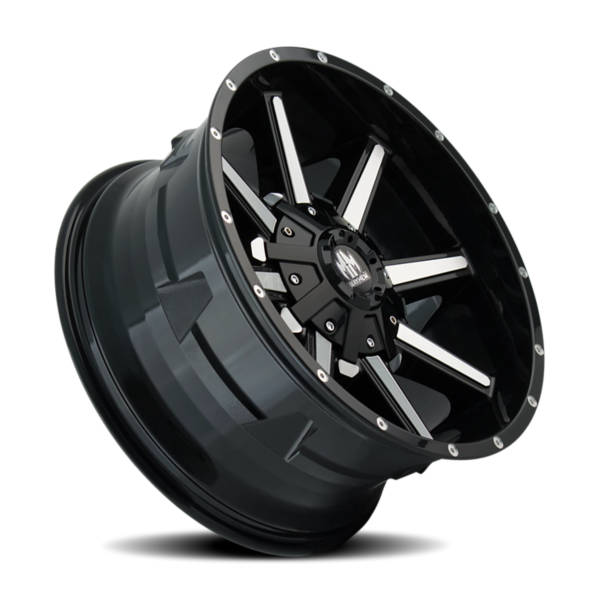

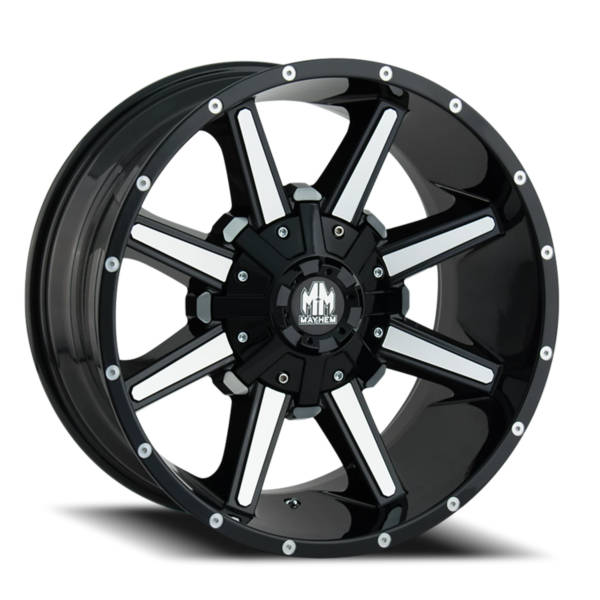

Mayhem Arsenal, 20 X10 8-165.10/170.00 -19 CRGLMF
The Mayhem Arsenal (8104) is an 8 spoke design with precise milled details on each spoke and machined rivets on the lip of the wheel. The Arsenal is built in 17 thru 22 inch sizes in a Black with Milled Spokes or Chrome finish. It comes with a bolt-on center cap featuring the Mayhem brand logo. The Mayhem Arsenal has a lifetime structural warranty and a one year finsh warranty.
| RIM DIAMETER Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 20" |
| RIM WIDTH Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 10" |
| BOLT PATTERN The number of bolt holes and the distance of the lug holes. The bolt pattern is specific to your vehicle. | 8-165.1/8-170.0 |
| OFFSET The offset determines the distance of the mounting pad in relation to the wheel's centerline. A higher offset tucks under the fender, a lower offset pushes towards the fender. | -19 |
| HUB BORE SIZE The size of the hole in the back of the wheel that fits over the vehicle hub bore. | 130.8 |
| WEIGHT The weight of the wheel measured in pounds (weight of wheel only). | 49 LBS |
| VENDOR FINISH The manufacturer finish of the wheel. | Black/machined |
| NUMBER OF BOLTS The number of bolts in the wheel in relation to the bolt pattern. | 8 |
| LOAD CAPACITY The weight the wheel can carry, mounted to a tire and inflated. | 3640 LBS |
| VPN Vendor Product Number | 8104-2176B |
| GTIN Global Trade Item Number | 049000152630 |
