Raceline 946G-Boost, 17 X8 6-120.00 35 GYMTBL

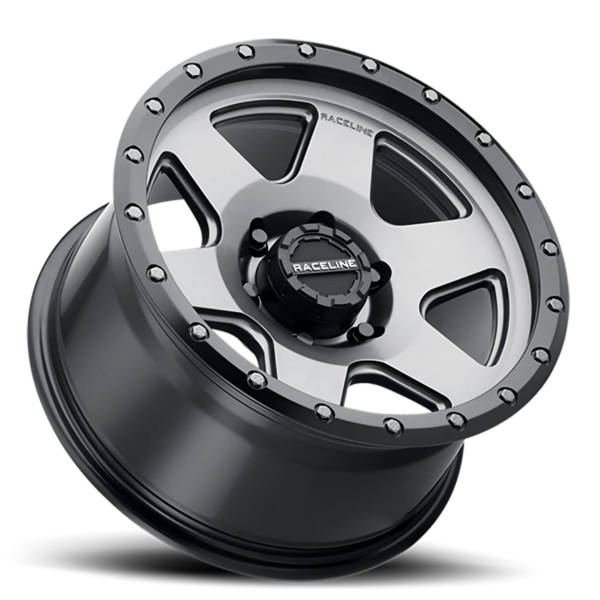

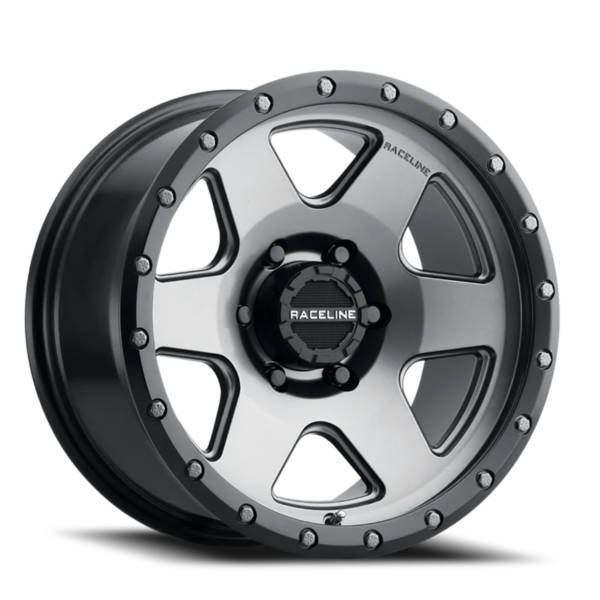

The Raceline 946G-Boost is a solid 6 spoke design with notched cut-outs on each spoke, a simulated beadlock surrounding the lip with stainless steel bolts and RACELINE debossed into the face of the wheel. The 946G-Boost is built in popular 17 through 20 inch truck and SUV sizes in a Satin Gunmetal finish. It comes with a push-through center cap featuring the Raceline brand logo. If you’re ready to amplify your ride, check out the 946G-Boost, by Raceline.
| RIM DIAMETER Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 17" |
| RIM WIDTH Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 8" |
| BOLT PATTERN The number of bolt holes and the distance of the lug holes. The bolt pattern is specific to your vehicle. | 6-120.0 |
| OFFSET The offset determines the distance of the mounting pad in relation to the wheel's centerline. A higher offset tucks under the fender, a lower offset pushes towards the fender. | 35 |
| HUB BORE SIZE The size of the hole in the back of the wheel that fits over the vehicle hub bore. | 67.1 |
| WEIGHT The weight of the wheel measured in pounds (weight of wheel only). | 29 LBS |
| VENDOR FINISH The manufacturer finish of the wheel. | Satin Gunmetal |
| NUMBER OF BOLTS The number of bolts in the wheel in relation to the bolt pattern. | 6 |
| LOAD CAPACITY The weight the wheel can carry, mounted to a tire and inflated. | 1850 LBS |
| VPN Vendor Product Number | 946G-78062+35 |
| GTIN Global Trade Item Number | 682108259414 |
