Raceline 948B-Split, 20 X9 8-180.00 18 BKMTXX

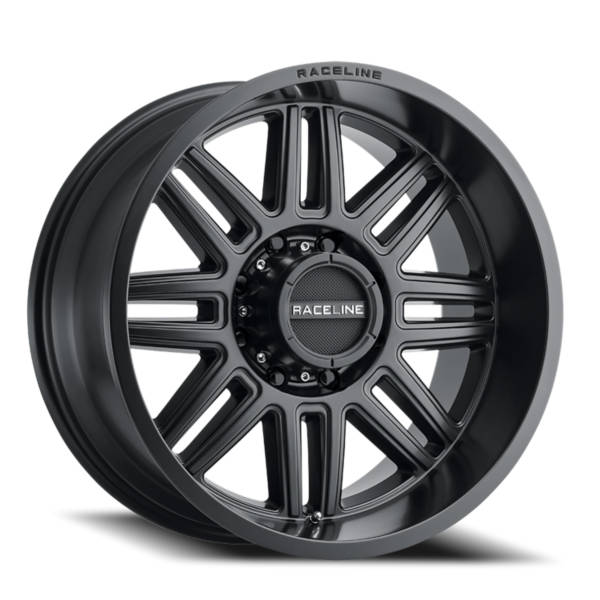

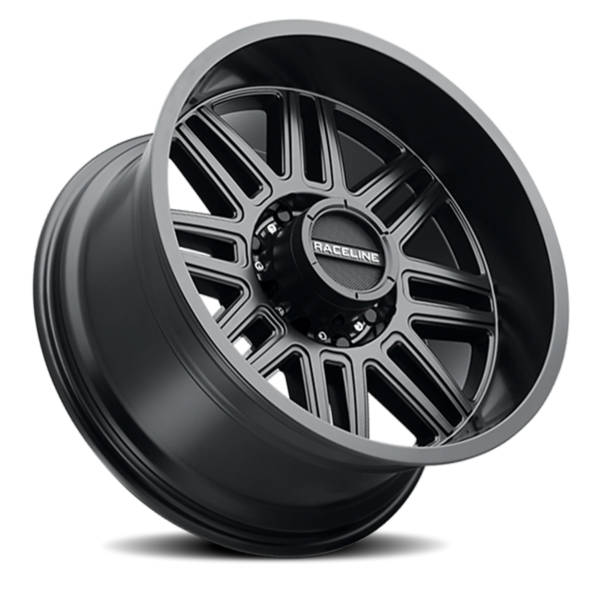

The Raceline 948B-Split is an 8 spoke design with a notched detail on each spoke and RACELINE embossed in the lip of the wheel. The 948B-Split is built in popular 16 through 20 inch light truck and SUV sizes in a Satin Black finish. It comes with a bolt-on center cap featuring the Raceline brand logo. This one is loaded with style points and will add that custom look to your ride, check out the 948B-Split, by Raceline.
| RIM DIAMETER Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 20" |
| RIM WIDTH Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 9" |
| BOLT PATTERN The number of bolt holes and the distance of the lug holes. The bolt pattern is specific to your vehicle. | 8-180.0 |
| OFFSET The offset determines the distance of the mounting pad in relation to the wheel's centerline. A higher offset tucks under the fender, a lower offset pushes towards the fender. | 18 |
| HUB BORE SIZE The size of the hole in the back of the wheel that fits over the vehicle hub bore. | 124.2 |
| WEIGHT The weight of the wheel measured in pounds (weight of wheel only). | 43.5 LBS |
| VENDOR FINISH The manufacturer finish of the wheel. | Satin Black |
| NUMBER OF BOLTS The number of bolts in the wheel in relation to the bolt pattern. | 8 |
| LOAD CAPACITY The weight the wheel can carry, mounted to a tire and inflated. | 3650 LBS |
| VPN Vendor Product Number | 948B-29088+18 |
| GTIN Global Trade Item Number | 682108270112 |
