Product info:
Vision Raptor, 17 X9 8-165.10 -10 BKMTXX

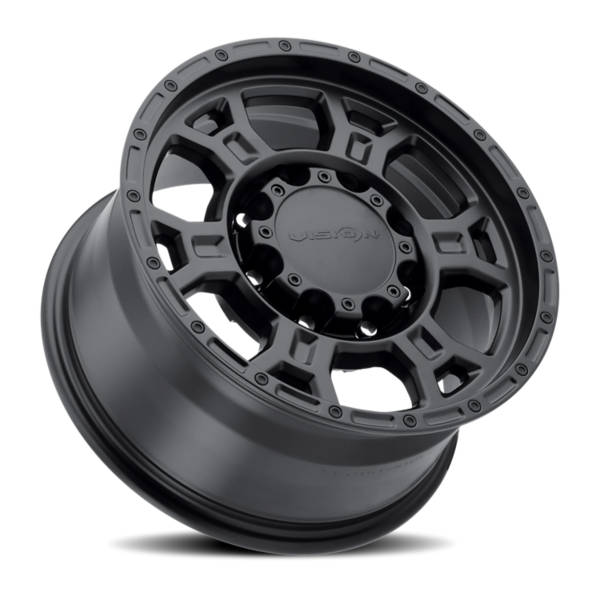

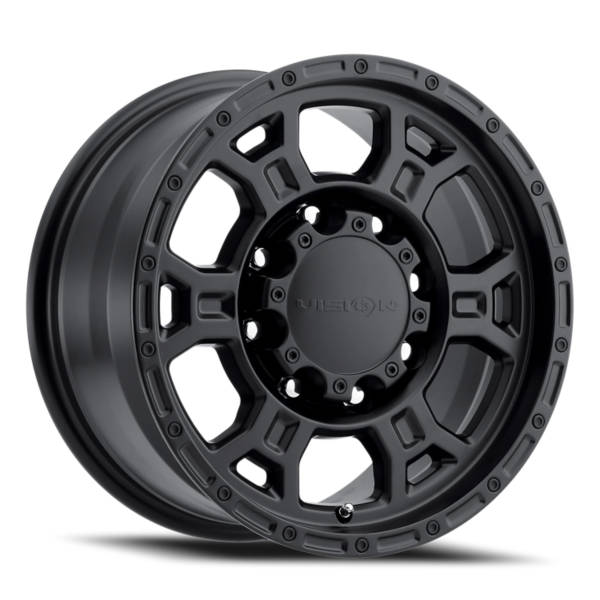

The Vision Off-Road Raptor (372) is a 6-spoke wheel design with machined details. This wheel features machined accents around each window cut-out along with divots cast into the lip of the wheel. It includes a bolt-on center cap with the Vision brand logo. It is built in popular 16, 17, 18 and 20 inch sizes in a Matte Black, Gloss Black Mirror Machined Face, or Chrome finish. The Vision Off-Road Raptor will add style and aggressive looks to your truck or SUV.
| RIM DIAMETER Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 17" |
| RIM WIDTH Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 9" |
| BOLT PATTERN The number of bolt holes and the distance of the lug holes. The bolt pattern is specific to your vehicle. | 8-165.1 |
| OFFSET The offset determines the distance of the mounting pad in relation to the wheel's centerline. A higher offset tucks under the fender, a lower offset pushes towards the fender. | -10 |
| HUB BORE SIZE The size of the hole in the back of the wheel that fits over the vehicle hub bore. | 125.2 |
| WEIGHT The weight of the wheel measured in pounds (weight of wheel only). | 36 LBS |
| VENDOR FINISH The manufacturer finish of the wheel. | Matte Black |
| NUMBER OF BOLTS The number of bolts in the wheel in relation to the bolt pattern. | 8 |
| LOAD CAPACITY The weight the wheel can carry, mounted to a tire and inflated. | 3650 LBS |
| VPN Vendor Product Number | 372-7981MB-10 |
| GTIN Global Trade Item Number | 886821097470 |
