Vision Switchback, 22 X9.5 5-115.00 8 CSCHXX

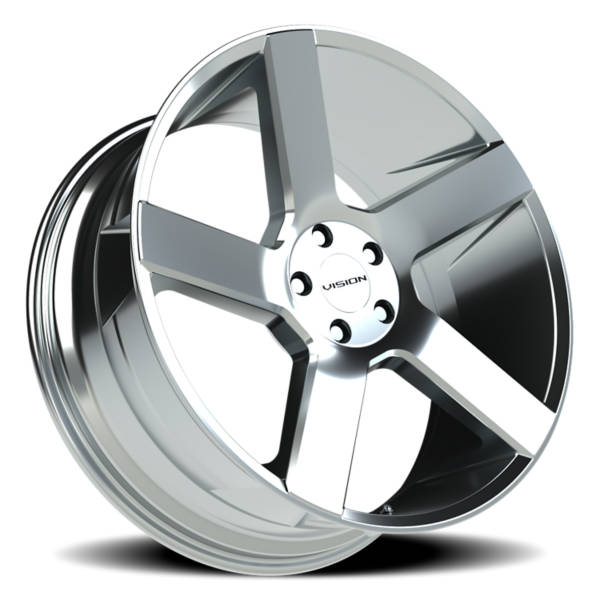

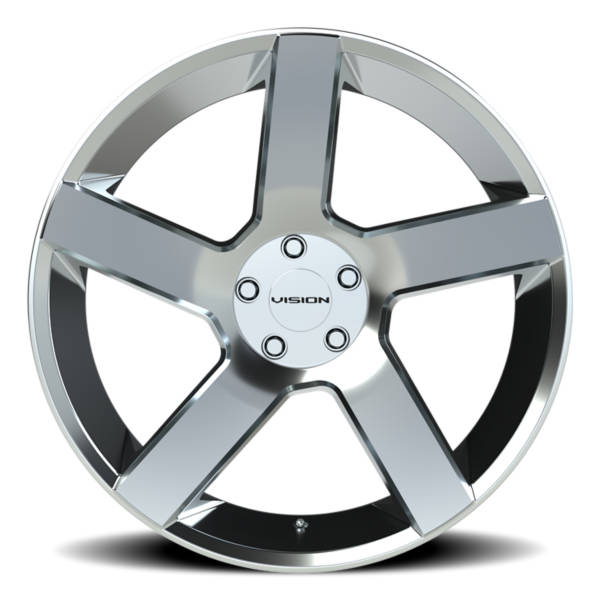

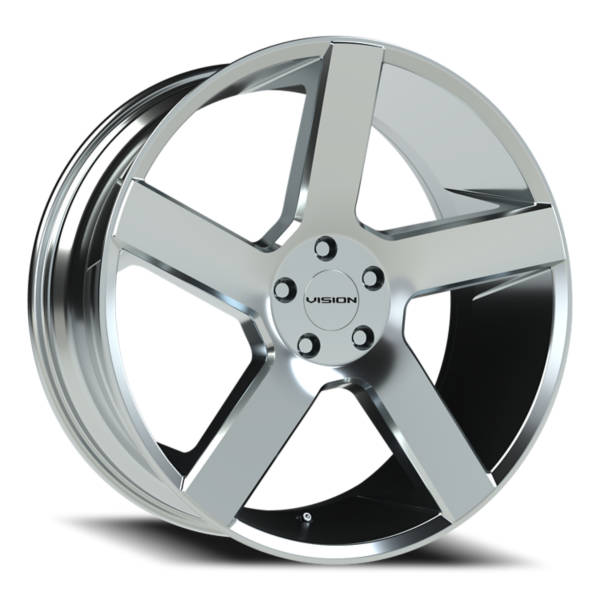

The feeling of hitting every green light is shared with driving on the 472 Switchback, the newest in design and quality from Vision Wheels. Available in 20, 22 and 24-inch fitments, if your commuter or classic has 6 lugs and is calling for a contemporary upgrade to its looks, the 472 Switchback comes in chrome, gloss black with a machined face and satin black finishes. All with 5 spokes and the attitude to match.
| RIM DIAMETER Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 22" |
| RIM WIDTH Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 9.5" |
| BOLT PATTERN The number of bolt holes and the distance of the lug holes. The bolt pattern is specific to your vehicle. | 5-115.0 |
| OFFSET The offset determines the distance of the mounting pad in relation to the wheel's centerline. A higher offset tucks under the fender, a lower offset pushes towards the fender. | 8 |
| HUB BORE SIZE The size of the hole in the back of the wheel that fits over the vehicle hub bore. | 74.1 |
| WEIGHT The weight of the wheel measured in pounds (weight of wheel only). | 47.3 LBS |
| VENDOR FINISH The manufacturer finish of the wheel. | Chrome |
| NUMBER OF BOLTS The number of bolts in the wheel in relation to the bolt pattern. | 5 |
| LOAD CAPACITY The weight the wheel can carry, mounted to a tire and inflated. | 2500 LBS |
| VPN Vendor Product Number | 472V22990C8 |
| GTIN Global Trade Item Number | 886821241989 |
