XD Series XD137 FMJ, 20 X9 5-139.70/150.00 0 BKMTXX

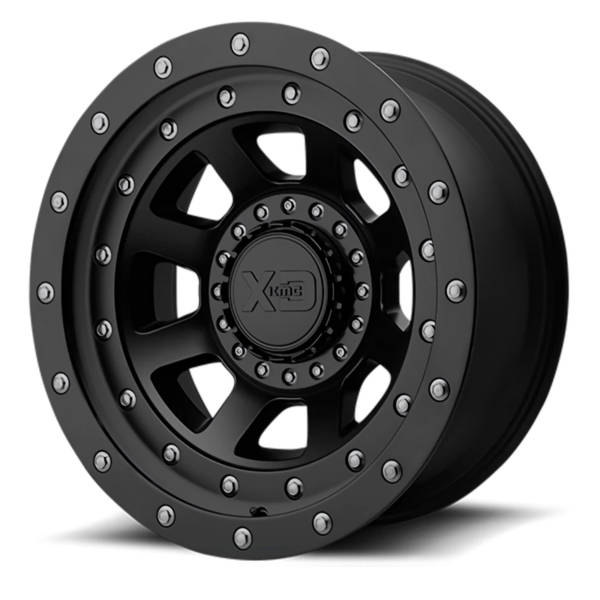

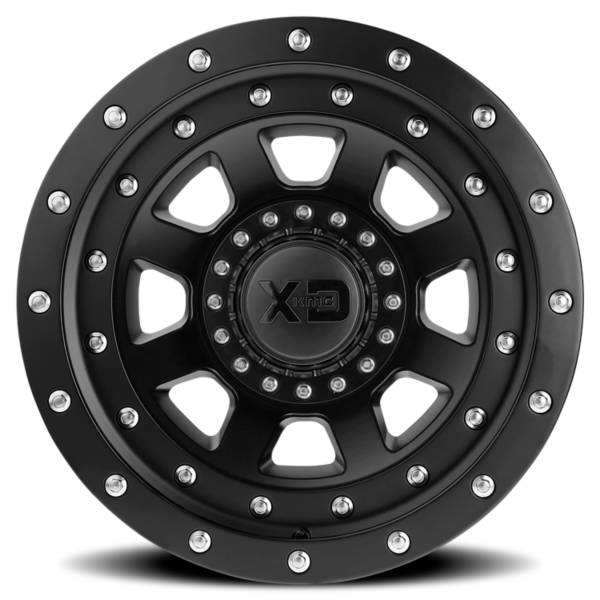

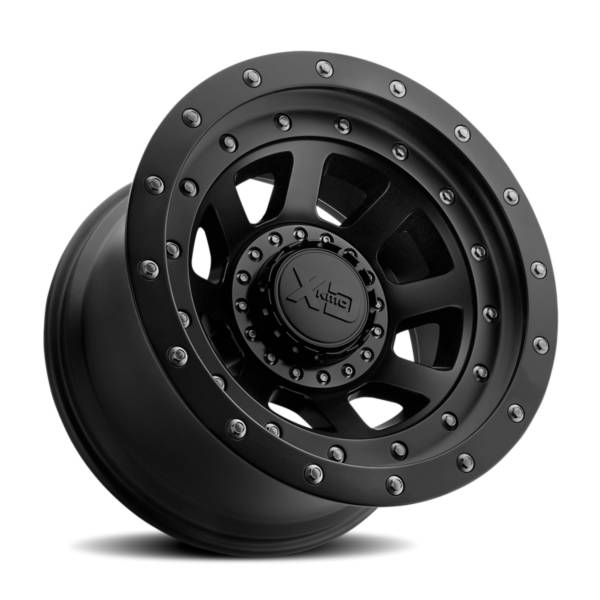

The XD137 FMJ is an 8 spoke, D-window design with a dual simulated bead lock design and a step-down feature. The XD137 FMJ is built in popular 16, 17 and 20 inch truck and SUV sizes in a Satin Black or Satin Black with dark tint finish. It comes with a bolt-on center cap featuring the XD KMC brand logo (the Satin Black with dark tint finish cap has a satin red insert). All KMC XD Series wheels are covered by a limited one year finish warranty and a limited lifetime structural warranty.
| RIM DIAMETER Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 20" |
| RIM WIDTH Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 9" |
| BOLT PATTERN The number of bolt holes and the distance of the lug holes. The bolt pattern is specific to your vehicle. | 5-139.7/5-150.0 |
| OFFSET The offset determines the distance of the mounting pad in relation to the wheel's centerline. A higher offset tucks under the fender, a lower offset pushes towards the fender. | 0 |
| HUB BORE SIZE The size of the hole in the back of the wheel that fits over the vehicle hub bore. | 110.5 |
| WEIGHT The weight of the wheel measured in pounds (weight of wheel only). | 46.8 LBS |
| VENDOR FINISH The manufacturer finish of the wheel. | Satin Black |
| NUMBER OF BOLTS The number of bolts in the wheel in relation to the bolt pattern. | 5 |
| LOAD CAPACITY The weight the wheel can carry, mounted to a tire and inflated. | 2500 LBS |
| VPN Vendor Product Number | XD13729086700 |
| GTIN Global Trade Item Number | 885463276519 |
