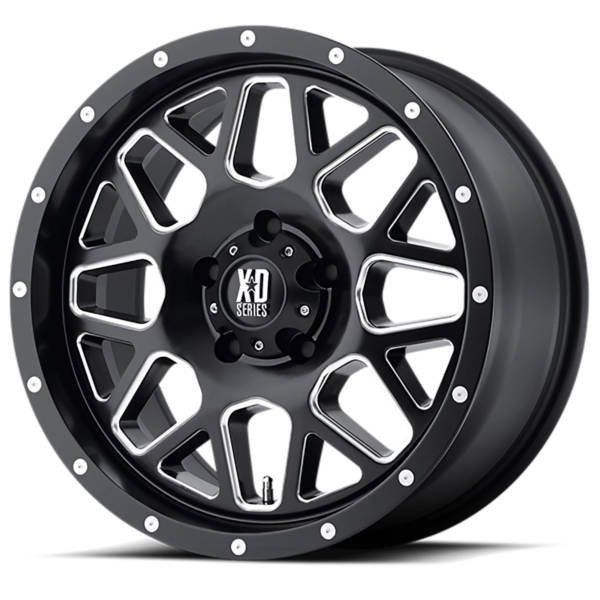

XD Series XD820 Grenade, 16 X7 5-130.00 42 BKMTBM
The XD Series XD820 Grenade has a mesh style design with intricate details in each spoke and machined rivets on the lip of the wheel. Offered in a Satin Black, Satin Black Milled, Satin Black W/Machined Face, Satin Black Milled W/Red Clear Coat or Satin Black Milled W/Blue Clear Coat finish and available in 16 thru 22 inch sizes. The bolt-on center cap features the XD Series logo and all KMC XD Series wheels are covered by a limited one year finish warranty and a limited lifetime structural warranty.
| RIM DIAMETER Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 16" |
| RIM WIDTH Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 7" |
| BOLT PATTERN The number of bolt holes and the distance of the lug holes. The bolt pattern is specific to your vehicle. | 5-130.0 |
| OFFSET The offset determines the distance of the mounting pad in relation to the wheel's centerline. A higher offset tucks under the fender, a lower offset pushes towards the fender. | 42 |
| HUB BORE SIZE The size of the hole in the back of the wheel that fits over the vehicle hub bore. | 84.1 |
| WEIGHT The weight of the wheel measured in pounds (weight of wheel only). | 29.95 LBS |
| VENDOR FINISH The manufacturer finish of the wheel. | Satin Black Milled |
| NUMBER OF BOLTS The number of bolts in the wheel in relation to the bolt pattern. | 5 |
| LOAD CAPACITY The weight the wheel can carry, mounted to a tire and inflated. | 3000 LBS |
| VPN Vendor Product Number | XD82067036942 |
| GTIN Global Trade Item Number | 049000057621 |
