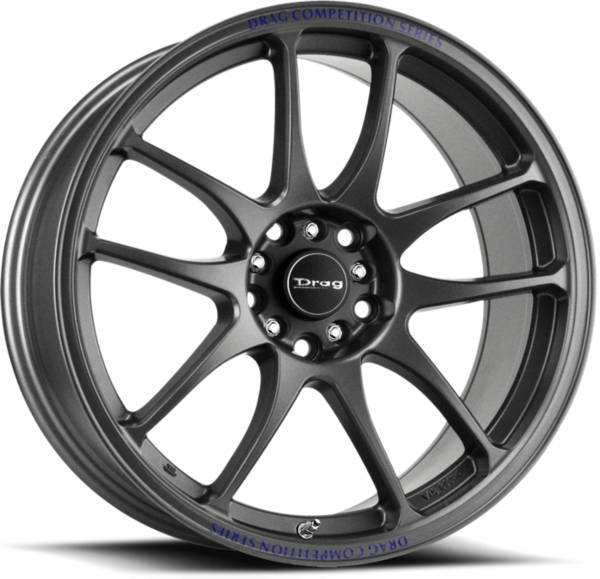

Drag DR-31, 16 X7 5-100.00/114.30 40 DGMTXX
The Drag DR-31 is a razor-sharp, split 5 spoke design. It is offered in a wide range of sizes including popular staggered sizes to fit some of the hardest to fit cars. A number of great finish options include full painted finishes in White, Charcoal Gray, Rally Bronze, Neon Orange, and Flat Black as well as contrasting red striped lip finishes in Flat Black. It includes a snap-in center cap featuring the Drag wheels logo. The Drag DR-31 combines aggressive street and race ready looks with strength and durability.
| RIM DIAMETER Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 16" |
| RIM WIDTH Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 7" |
| BOLT PATTERN The number of bolt holes and the distance of the lug holes. The bolt pattern is specific to your vehicle. | 5-100.0/5-114.3 |
| OFFSET The offset determines the distance of the mounting pad in relation to the wheel's centerline. A higher offset tucks under the fender, a lower offset pushes towards the fender. | 40 |
| HUB BORE SIZE The size of the hole in the back of the wheel that fits over the vehicle hub bore. | 73 |
| WEIGHT The weight of the wheel measured in pounds (weight of wheel only). | 17 LBS |
| VENDOR FINISH The manufacturer finish of the wheel. | Charcoal Gray Full Painted |
| NUMBER OF BOLTS The number of bolts in the wheel in relation to the bolt pattern. | 5 |
| LOAD CAPACITY The weight the wheel can carry, mounted to a tire and inflated. | 1520 LBS |
| VPN Vendor Product Number | DR31167054073GMF1 |
| GTIN Global Trade Item Number | 54226 |
