Product info:
Vision Assault
Vision Assault

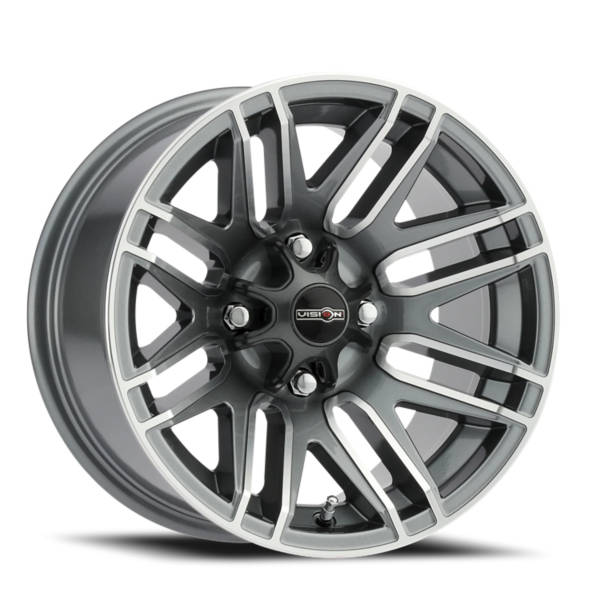

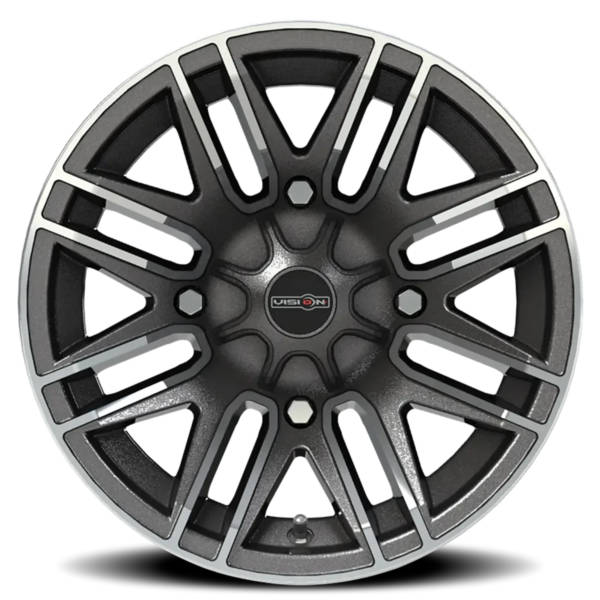

Go on the assault with the Vision Assault UTV wheel. With its high-end design and construction, victory is assured. Its features include:
The 112 Assault by Vision Wheels is an amazingly high-end design that rivals most vehicle wheels.
With eight split spokes and a machined face, this modern industrial style wheel will ramp up any UTV’s trail cred instantly.
This is a concave wheel with inset central hub and outwardly reaching spokes, offering great structural reinforcement and aesthetic intrigue.
The central hub features exposed lugs and a screw-on center cap that showcases the Vision logo.
Customize your UTV’s stance with offsets ranging from -61 to +3.
The Assault weighs between 14lbs and 19lbs depending on size, giving you a lightweight but structurally sound rim to rip up the trail.
Available in 12’’ to 14’’rim diameters, it fits a variety of UTV makes and models.
This rim comes in a flattering gunmetal with machined face finish.
The Assault is built in four-lug bolt patterns and is compatible with many UTVs.
Vision offers a lifetime structural warranty and a one year warranty on the finish.
Check out our amazing selection of ATV and UTV tires, too!
| RIM DIAMETER Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 12.0" - 14.0" |
| RIM WIDTH Measured from the top of the wheel to the bottom in inches from the tire bead section, not including the outer lip. | 7.0" - 8.0" |
| BOLT PATTERN The number of bolt holes and the distance of the lug holes. The bolt pattern is specific to your vehicle. | 4-101.6 - 4-156.0 |
| OFFSET The offset determines the distance of the mounting pad in relation to the wheel's centerline. A higher offset tucks under the fender, a lower offset pushes towards the fender. | -10 - 2.5 |
| HUB BORE SIZE The size of the hole in the back of the wheel that fits over the vehicle hub bore. | 69.85 - 131.1 |
| NUMBER OF BOLTS The number of bolts in the wheel in relation to the bolt pattern. | 4 |
| LOAD CAPACITY The weight the wheel can carry, mounted to a tire and inflated. | 675.0 LBS - 1300.0 LBS |
